Turnkey Projects

Project Execution on Turnkey Basis

Transformer Oil storage Tank

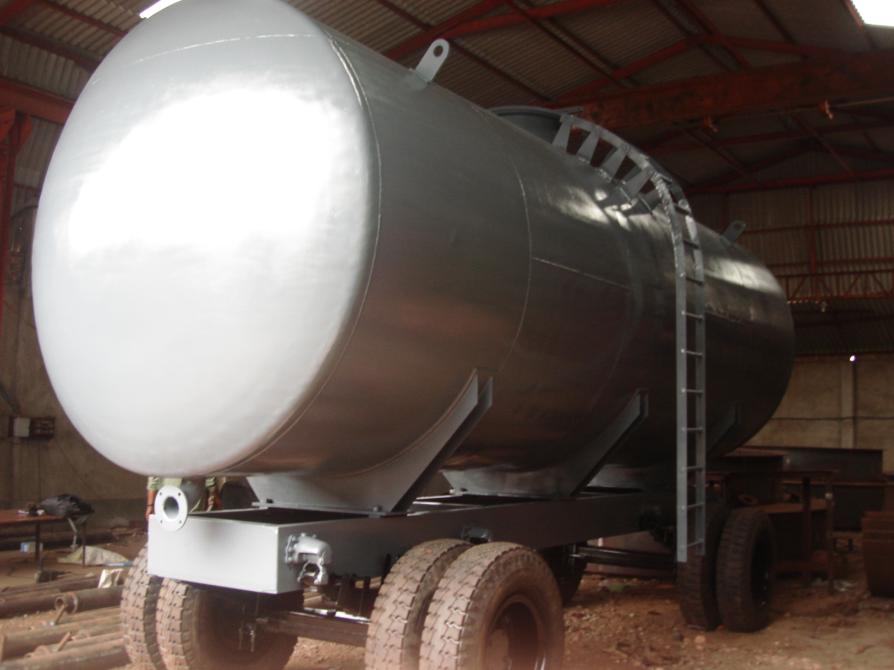

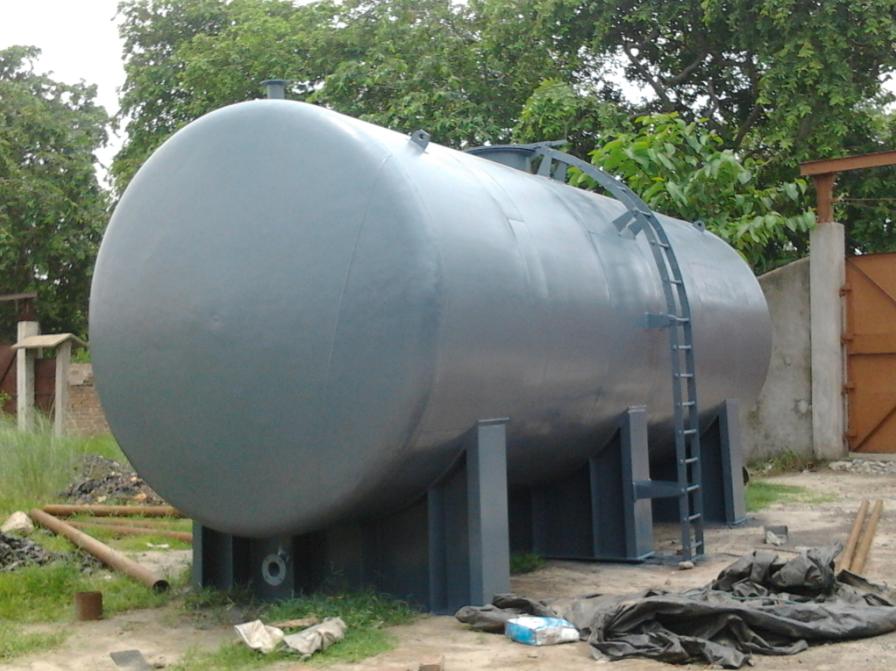

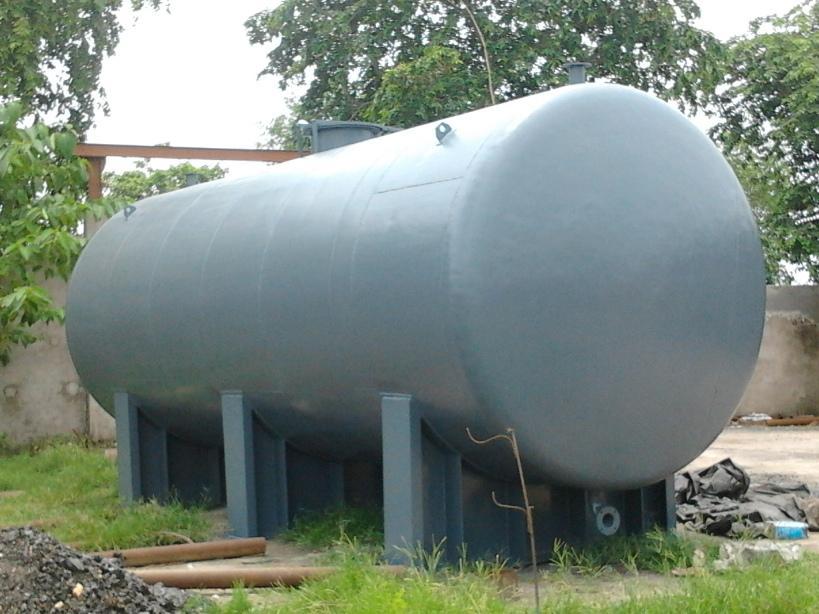

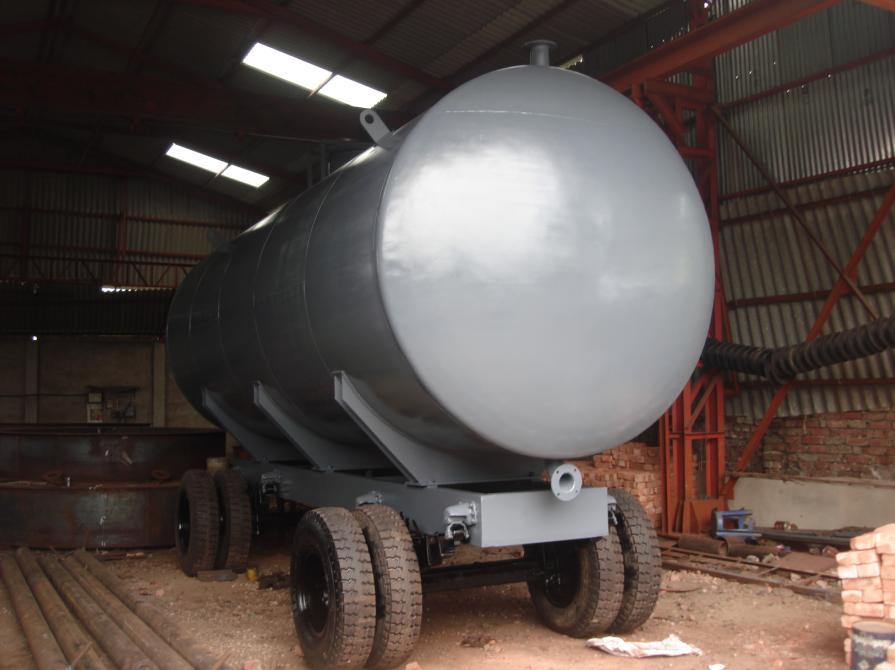

We have Design / Manufactured & Supplied Trolley Mounted & Ground Mounted Transformer Tank Capacity 25Kl for the Storage of Transformer Oil for the Maintenance of Transformer. It is towable having eight (08) nos. of pneumatic tyres of suitable size for resting on Four (04) nos. of suitable jacking pads for supporting the empty / loaded tank resting on the ground without tyres. The tank will be fabricated with adequately designed M.S Plate welded seamlessly and will have welded dish ends. The tank shall be primarily resting on two saddles and the saddles shall be mounted on a chassis. The chassis shall be resting on two axles connected through leaf springs and rocker links without . Braking arrangement Each Axle shall be fitted with four Pneumatic Tyres for supporting the fully loaded tank while on move. One no. suitable Tow-Bar shall be provided at one side of the Tank for connecting to the Towing truck.
